Bucket Elevator

What Is
Bucket Elevator Machine?

In processing plant installations, the Bucket Elevator is the primary choice for vertical (perpendicular) material handling. Its main advantage is significant floor space (footprint) savings, as it can lift materials to maximum heights using a very small base area. This is a smart solution for distributing materials to screening towers or storage silos.

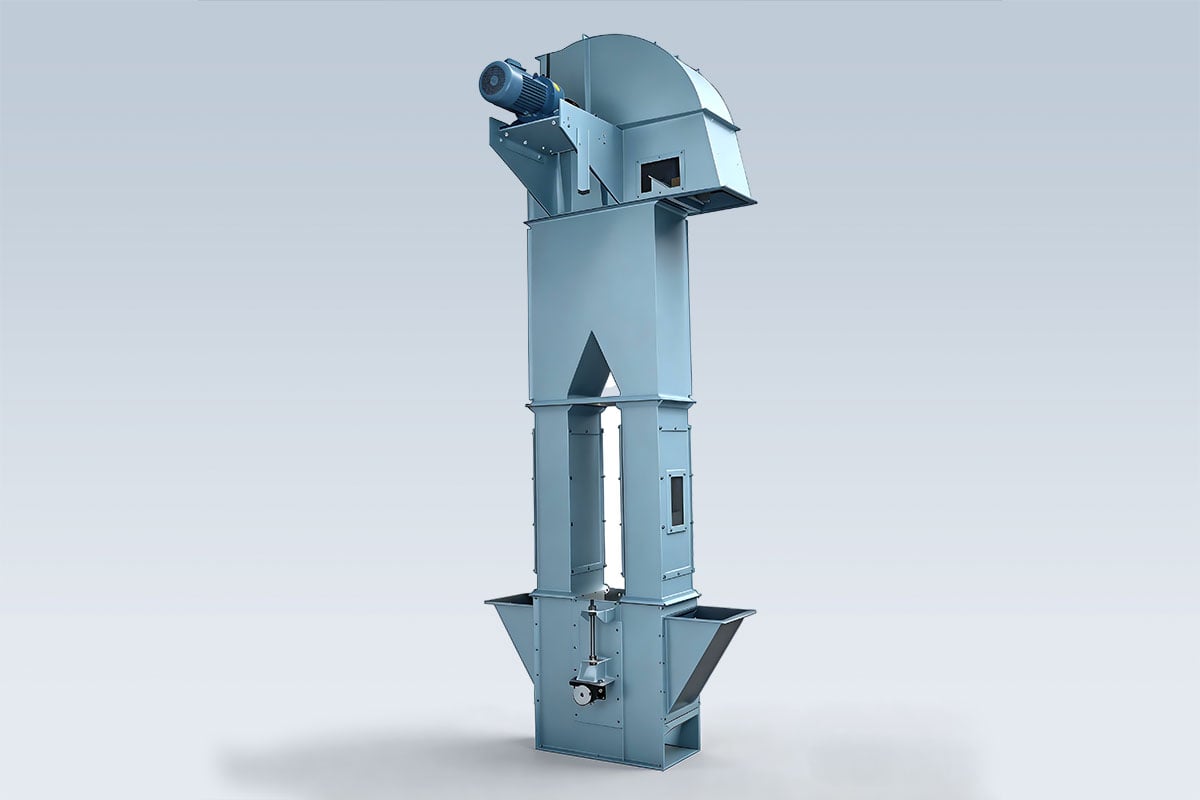

The ZME Bucket Elevator is ruggedly designed with a robust vertical structure to handle final-stage material distribution. Its ability to stably lift fine-to-coarse aggregates ensures a smooth production flow, especially when your plant location has limited land space but requires high lifting capacity to the next processing stage.

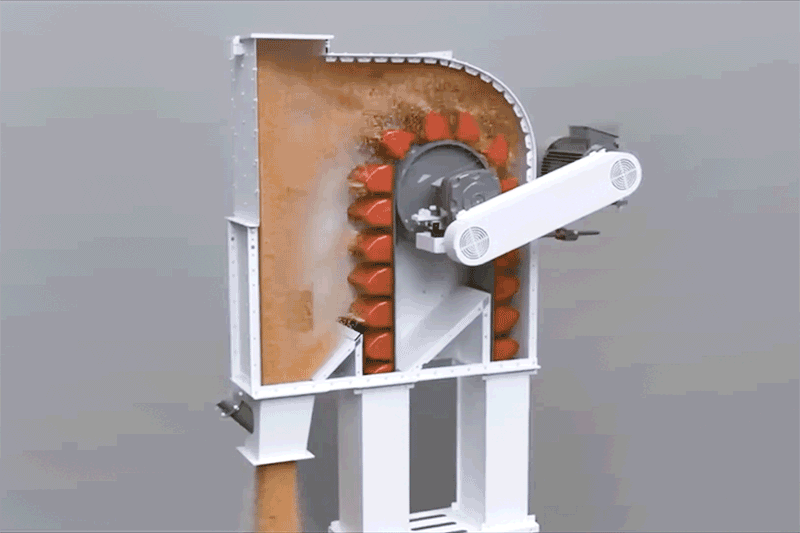

This machine transports material via a series of buckets attached to a high-speed driving belt or chain inside an enclosed shaft. Flexibility is key: the system is equipped with an automatic tensioning mechanism and safety sensors, ensuring operational safety even when handling full workloads toward the discharge point at height.

Applications
Bucket Elevator Machine

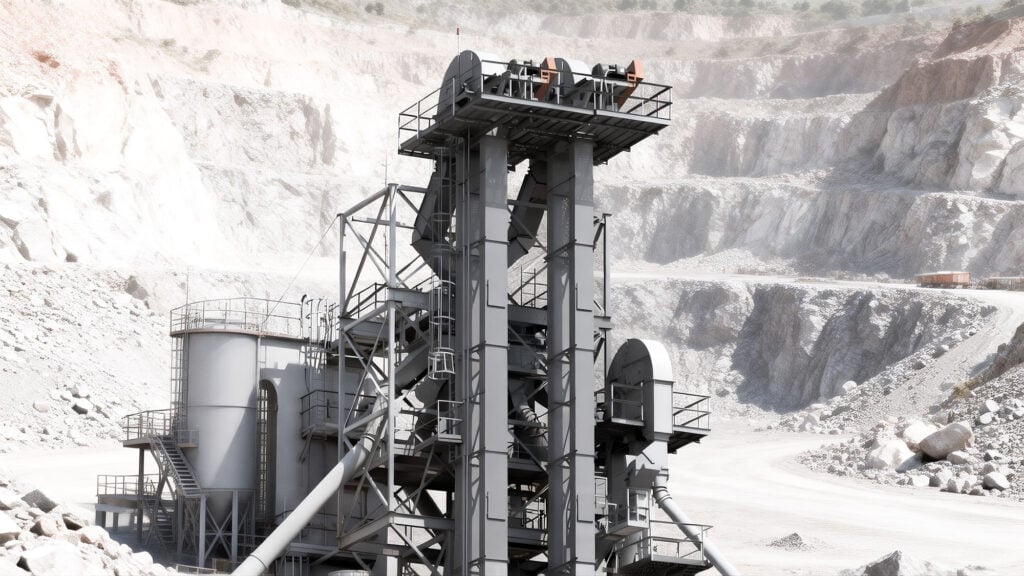

The ZME Bucket Elevator is the ideal choice for vertical material transport to maximize productivity at plant sites with limited land space. From storage silos to high screening towers, this machine guarantees a stable material flow toward the highest distribution point in your processing plant. Once the material is lifted to a certain height, the flow is typically further distributed via belt conveyors for stockpiling or final screening processes.

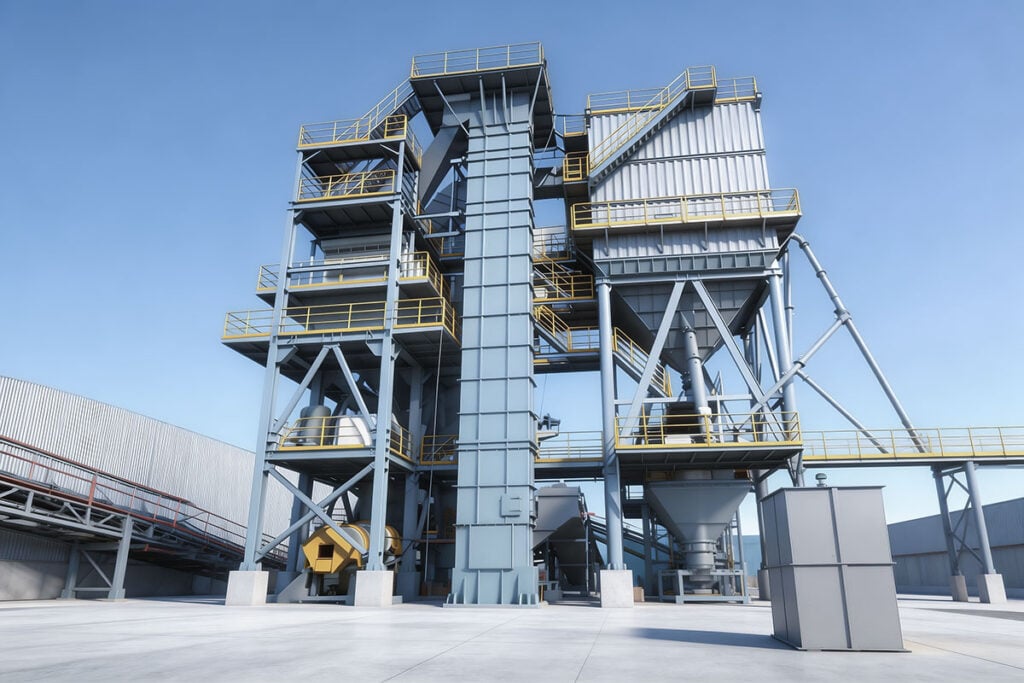

Within the building materials and grain processing sectors, this machine is highly effective for lifting materials perpendicularly without requiring a large floor footprint. ZME designs this machine to support the needs of the ready-mix mortar, silica sand processing, and chemical plant industries, ensuring material transfer between processing floors runs safely and efficiently.

It is perfectly suited for various types of granular and powder materials such as industrial sand, fine limestone, fertilizer, and granular minerals. With its robust vertical construction and high lifting stability, the ZME Bucket Elevator stands as the smartest solution to optimize plant layout while increasing the efficiency of your production space.

Advantages of
ZME Bucket Elevator

The ZME Bucket Elevator machine is designed for high-performance vertical transport with minimal power consumption. Utilizing an inflow feeding system and a densely arranged hopper setup, this machine minimizes material backflow and inefficient power usage. With a robust modular design (TD & TH Types), ZME offers high lifting capacities, reliable dust sealing, and exceptionally long component lifespans for a wide range of materials, from powders to abrasives.

1. High Energy Efficiency & Maximum Lifting Capacity
   ZME optimizes the lifting mechanism to ensure maximum output with the lowest operational costs:
   Low Power Consumption: Adopts inflow feeding and induction discharge methods. The tightly spaced hoppers minimize material “digging” phenomena, thereby reducing wasted power.
   High Speed & Volume: Engineered for high-speed transport with capacities exceeding standard domestic products, ensuring your daily production targets are easily met.

2. Robust Construction & Advanced Protection Systems
   Innovations in the TD and TH models ensure mechanical reliability even under heavy working conditions:
   High-Integrity Body Structure: The middle casing is fabricated using welded bent components to provide maximum structural rigidity and stability while remaining space-efficient.

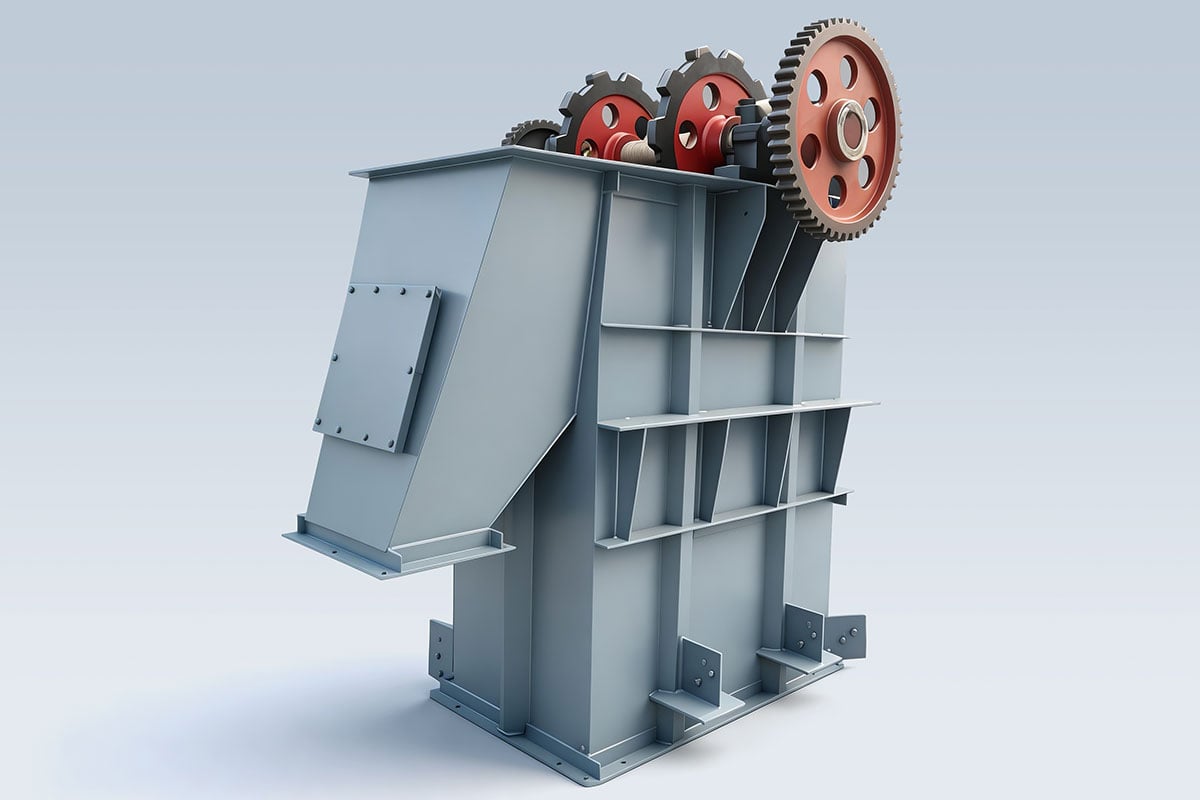

   Key Component Protection: Equipped with rubber-lagged head pulleys to prevent belt slippage, as well as buffer devices at the machine base to reduce vibration and prevent damage from foreign object entry.
   Anti-Reverse Mechanism (Optional): An optional mechanical stop-reverse device is available for lifting heights above 20 meters to prevent blockages caused by material falling back when the machine stops.

3. Eco-Friendly Operation & Smart Maintenance
   ZME prioritizes a clean working environment and ease of maintenance access:
   Dust-Proof Sealing: Utilizes a biting-edge structure on the lifting pipes and specialized seals on the inspection doors to ensure zero dust leakage, supporting green and environmentally friendly production.
   Automatic Tensioning System: Equipped with a counterweight lever tensioning device (on TH types) that automatically maintains constant chain/belt tension without the need for manual adjustments after initial installation.
   Ease of Inspection: The operating tubes feature a full-open structure design, allowing technical personnel to perform routine checks and maintenance easily with minimal downtime.
